You are here: Product / HP-EPB Series Carbon Electrode Paste Forming Machine

Carbon Electrode Paste Forming Machine
Carbon Electrode Paste Forming Machine
Carbon Electrode Paste Forming Machine
Carbon Electrode Paste Forming Machine

Carbon Electrode Paste Forming Machine

Product Description

Carbon Electrode Paste Forming Machine
Carbon Electrode Paste Forming Machine
Carbon Electrode Paste Forming Machine
Carbon Electrode Paste Forming Machine

Technical Parameters

No.

Item

Parameters

1

Rated Capacity

2-3T/H

3.5-4T/H

2

Power of Main Transmission

7.5KW

7.5KW

3

Model of Reducer

XWED 106-7.5kw

XWED 106-7.5kw

4

Available Capacity of Thermal Insulation Storage

3000L

4000L

5

Heating Method of Thermal Insulation Storage

Heat Transfer Oil

Heat Transfer Oil

6

Length of Chain Plate

15M

20M

7

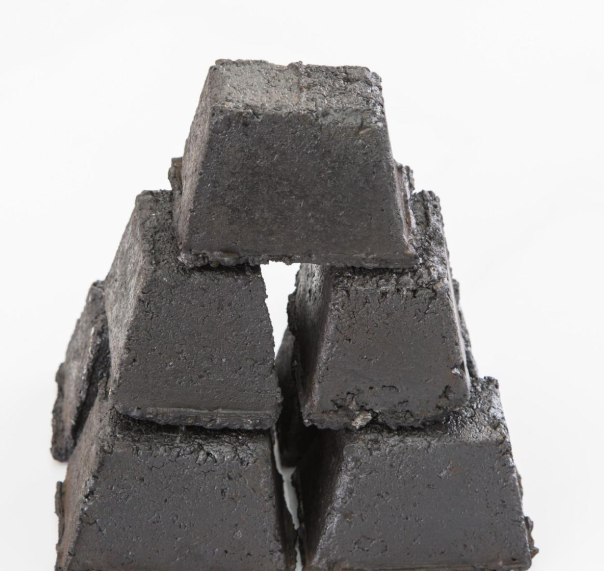

Dimension of Briquette

Upper part 60*60mm/

Bottom Part 50*50mm

Upper part 120*70mm/

Bottom Part 90*40mm

8

Pitch of Chain Plate

60mm

120mm

TECHNICAL PERFORMANCE

high strength

low porosity

 high temperature resistance

small coefficient of thermal expansion

 good appearance

small weight difference
