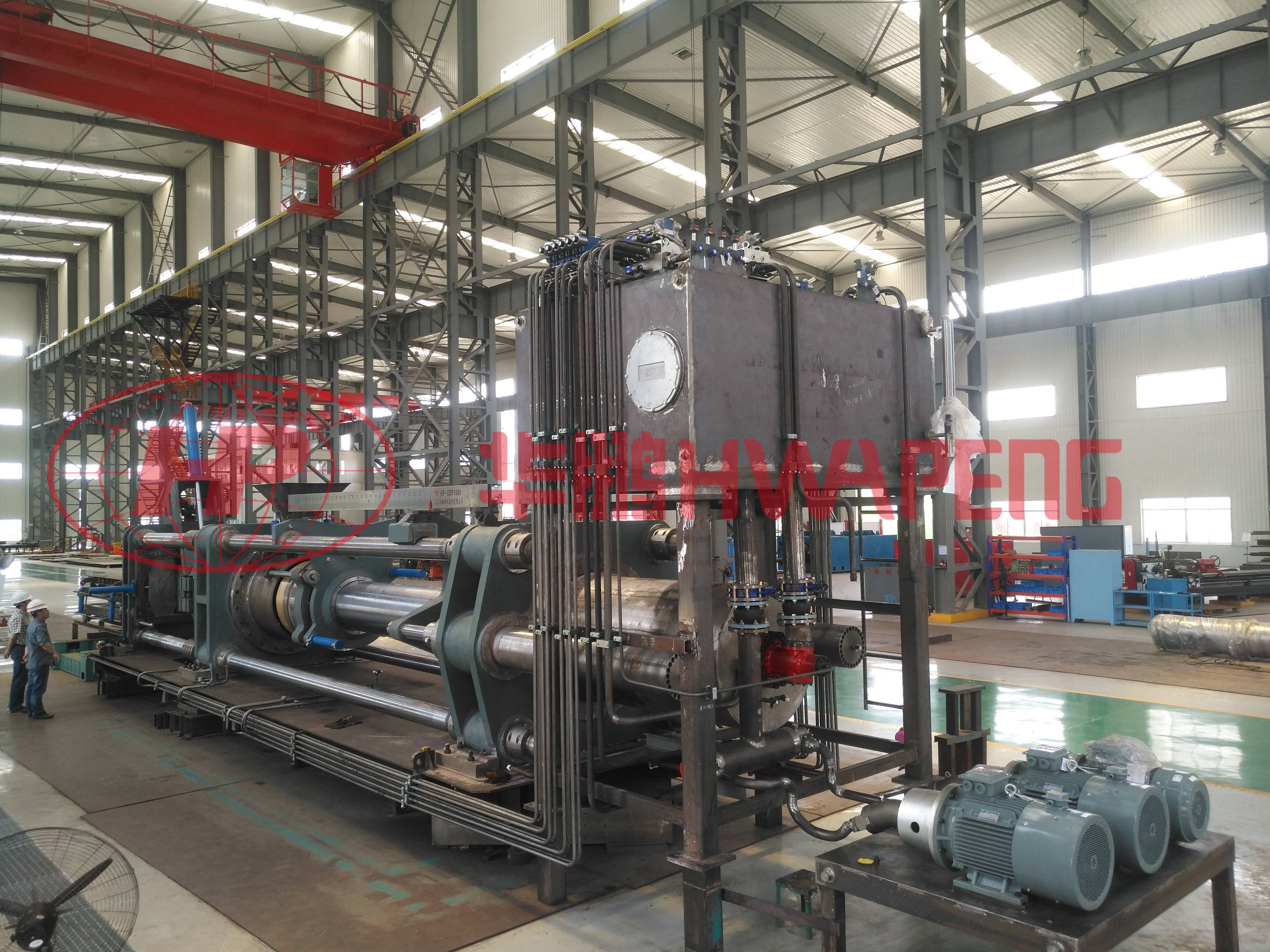

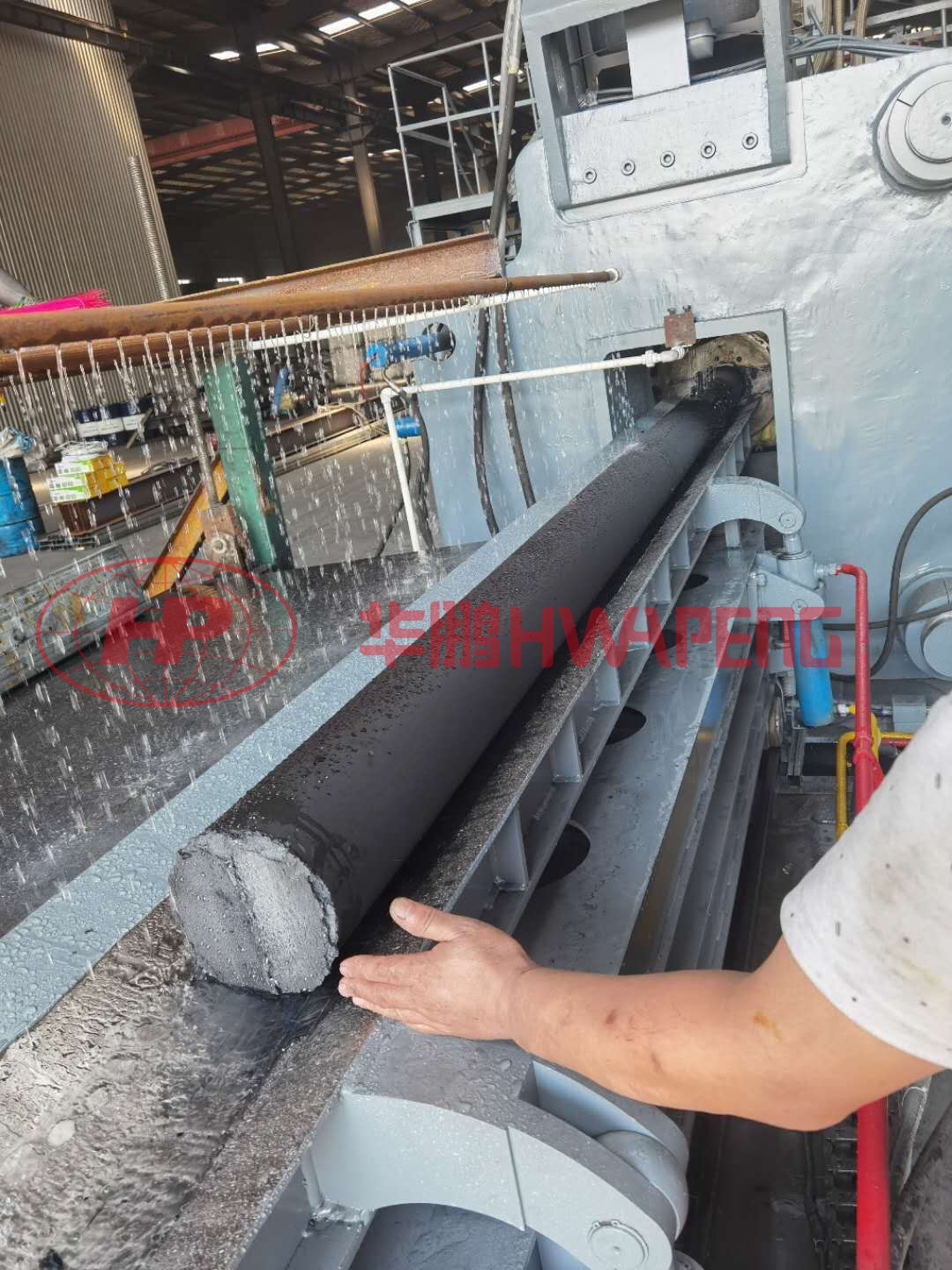

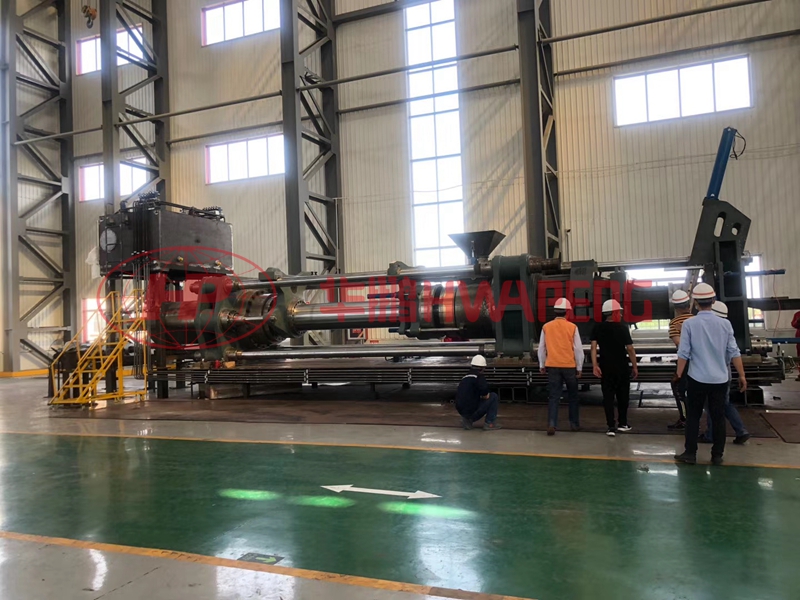

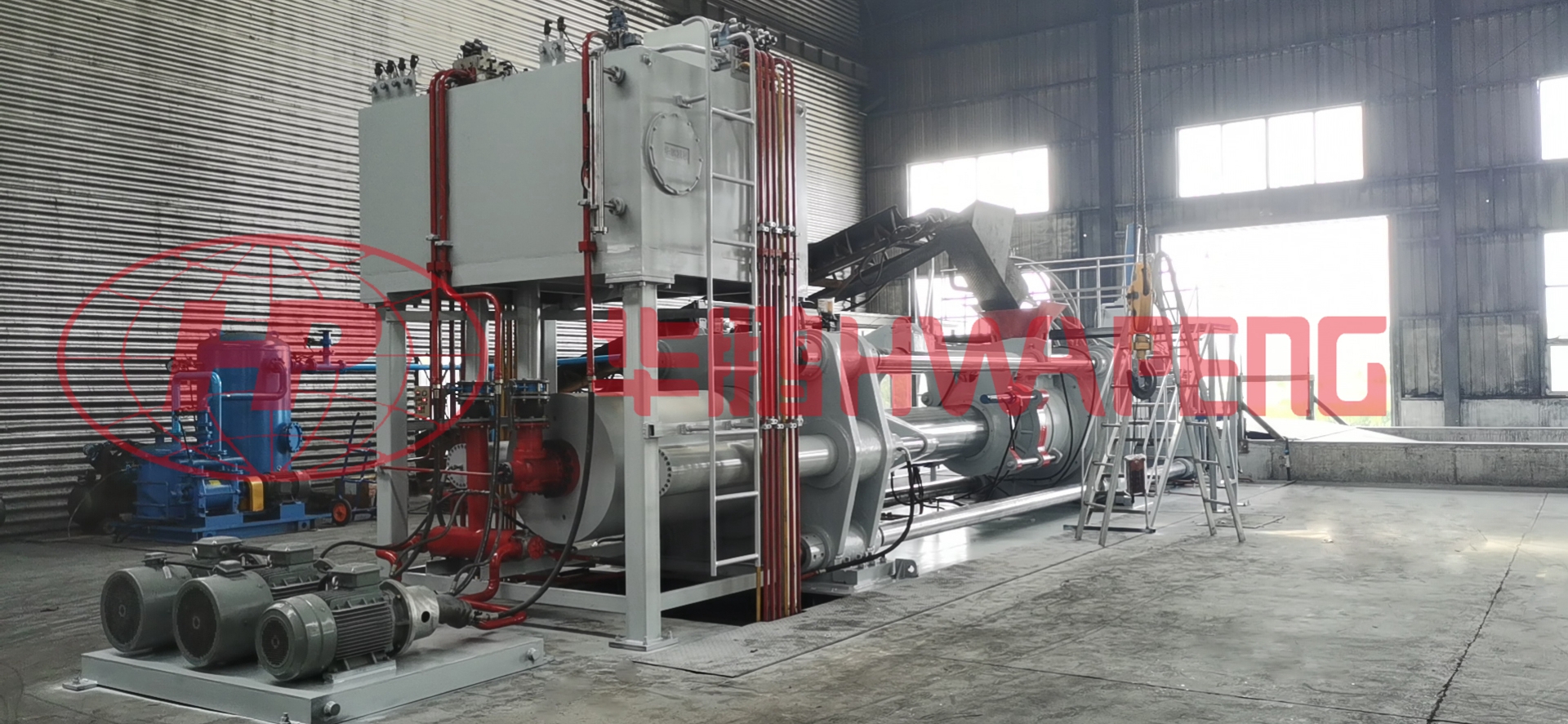

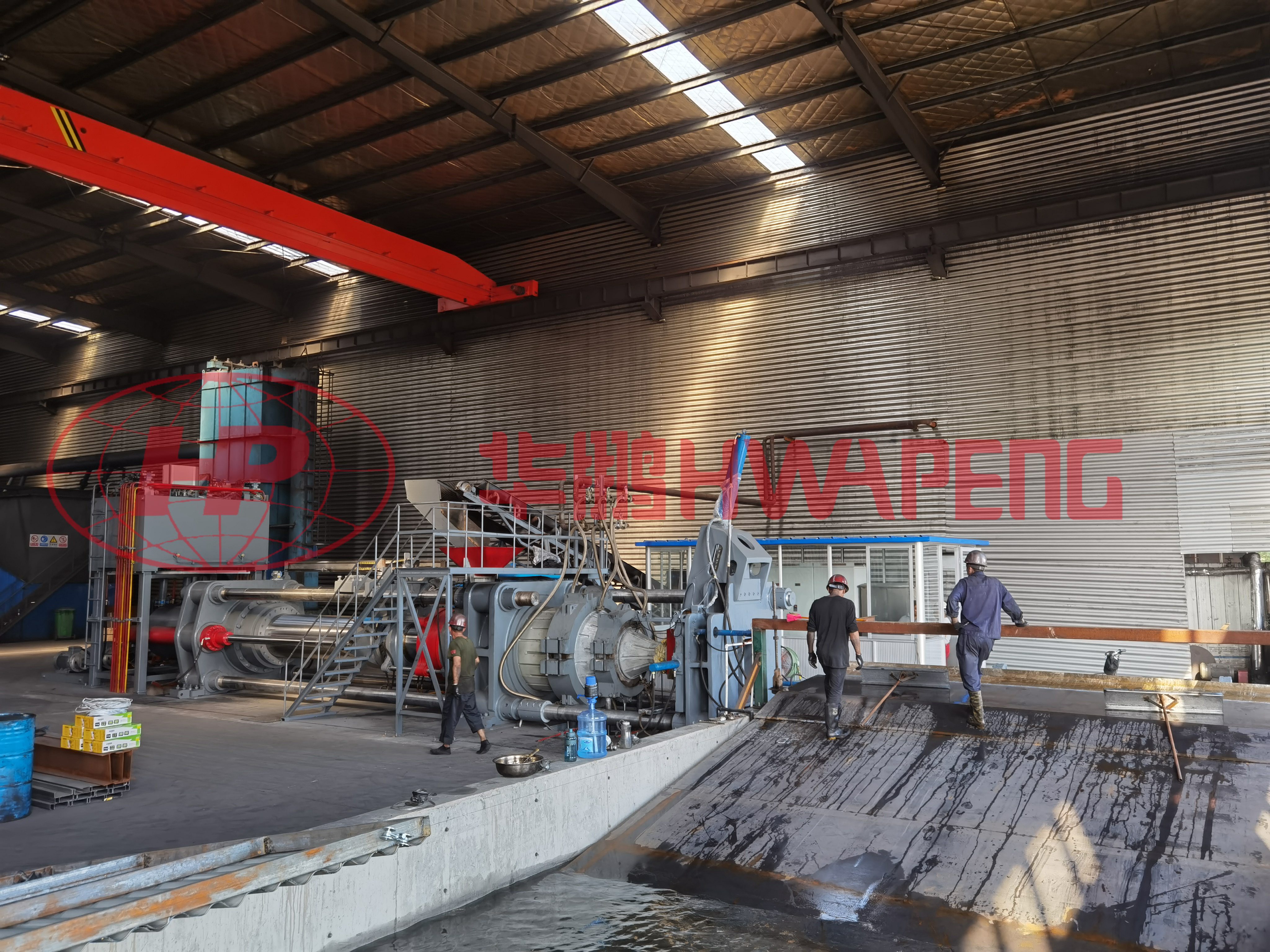

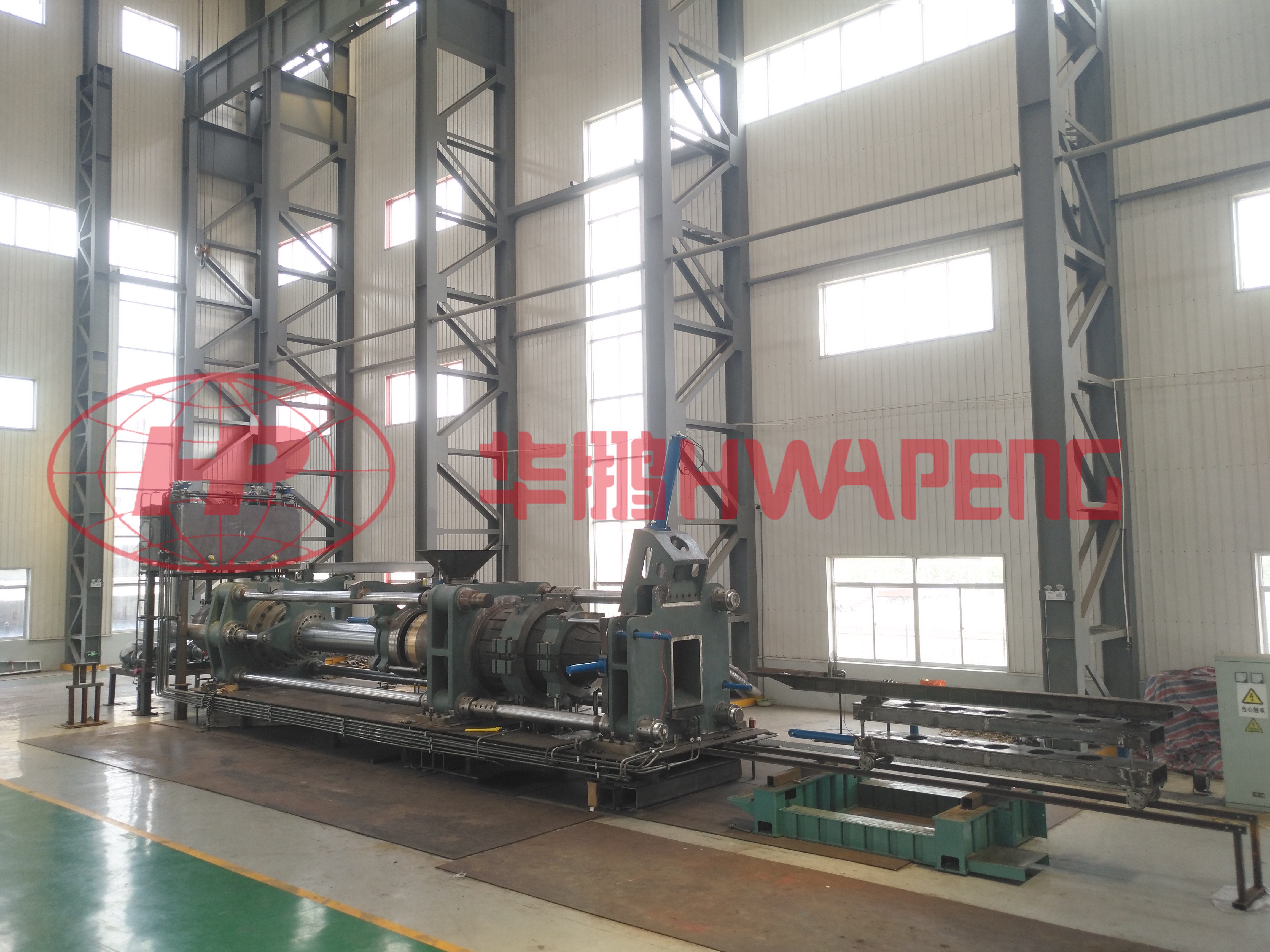

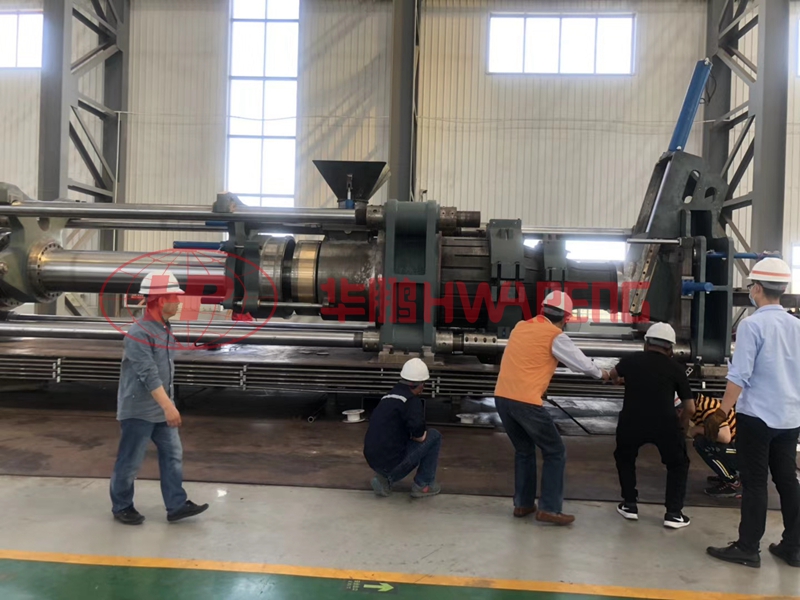

HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press

HP-CEP Series Electrode Extrusion Press

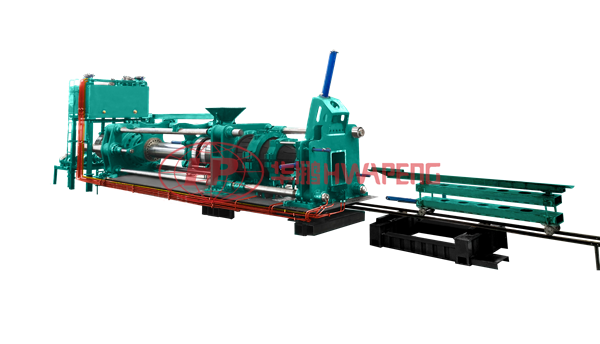

Product Description

HP-CEP Series Carbon Extrusion Press adopts premium hydraulic extrusion and control technology, vacuum technology, piecewise heating technology, synchronous shearing technology, and PLC technology and so on to provide the best carbon extrusion solution.

HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press
HP-CEP Series Electrode Extrusion Press

Technical Parameters

Nominal Tonnage/MN

10

15

20

25

35

42

Press Type

Horizontal type with tree-cylinder four-column & single fixed chamber

Diameter of Main Cylinder/mm

630

780

900

1050

1200

1300

Diameter of Auxiliary Cylinder/mm

250

250

300

300

350

350

Extrusion Stroke/mm

2000

2000

2400

3200

3800

4000

Valid Chamber Dimension/mm

Φ800×1600

Φ1050×1600

Φ1150×2000

Φ1300×2400

Φ1400×2800

Φ1500×3000

Max. Chamber Loading Capacity/kg

1300

2200

3300

5100

6500

8000

Die Specification/mm

Φ100~Φ300

Φ150~Φ450

Φ200~Φ500

Φ200~Φ550

Φ250~Φ600

Φ350~Φ700

Extrusion Ratio

6.1~42

4.9~39

4.8~33

5~33.7

5~26

4~16

Extrusion Speed/mm/s

0~5

Design Pressure/MPa

31.5

Work Pressure/MPa

25

Main Motor Power/kW

2×30

2×37

2×45

2×55

2×75

3×75

Heating Method

Heat Transfer Oil

Shearing Device

Fixed Shear + Synchronous Shear

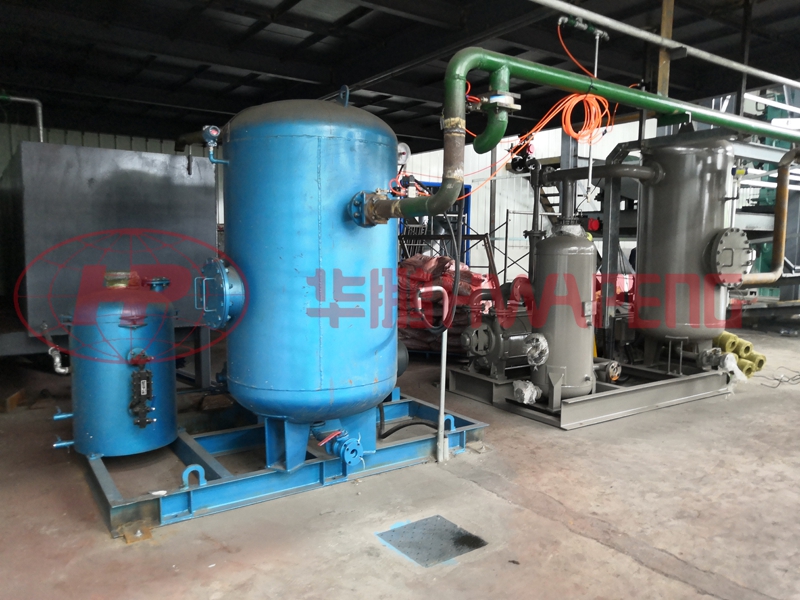

Vacuum System

Water-ring Vacuum Pump + Vacuum Reservoir(+Lobe Pump)



TECHNICAL PERFORMANCE

1. Precise Control of Extrusion Speed

The hydraulic system drives main plunger cylinder to accurately control extrusion speed of graphite electrodes and to ensure quality of graphite electrodes.

2. New Die Design

The design of multi-curve reducing section combined with short transition section die can greatly improve forming density and surface quality of graphite electrode.

3. Vacuum System

Vacuum system evacuates the paste during both the pre-extrusion and extrusion process to fully emit pitch fume and to improve forming and finished product quality, to get short pre-extrusion time and efficient production.

4. Automatic Synchronous Shearing Device

Which avoids internal layering, expansion, cracking and other defects of graphite electrodes caused by fixed type shearing device and guarantees quality of graphite electrodes and improves production efficiency.

5. Accurate Temperature Control of Material Chamber And Die By Stages

Material chamber and dies are heated with accurate temperature control by stages to guarantee stable quality of graphite electrode.

6. Quick Return Assisted By Auxiliary Cylinder

Auxiliary cylinders are responsible for quick return movement of the extrusion rod to improve work efficiency.

7. Fixed Type Single Material Chamber

Simple structure ensures the cost saving of equipment, infrastructure and supporting facilities, and reliable operation and easy maintenance.

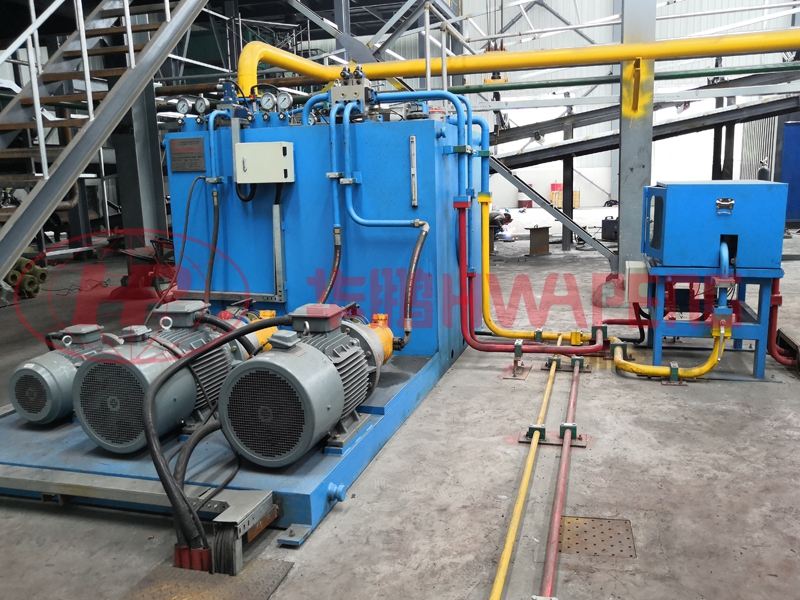

8. Hydraulic Control System

Domestic and overseas famous cartridge system, valves and filtering systems and pump station adopting independent circulation system are applied to guarantee continuous stable and reliable operation of hydraulic system. Flanged pipe connection guarantees reliable sealing and zero leakage of hydraulic system pipes under multiple high pressure circulations.

9. PLC Automatic Control

PLC automatic control is applied to set key process parameters and to automatically control the process, the system runs automatically which guarantees production process parameters and quality stability, productivity is improved and production cost is reduced.
